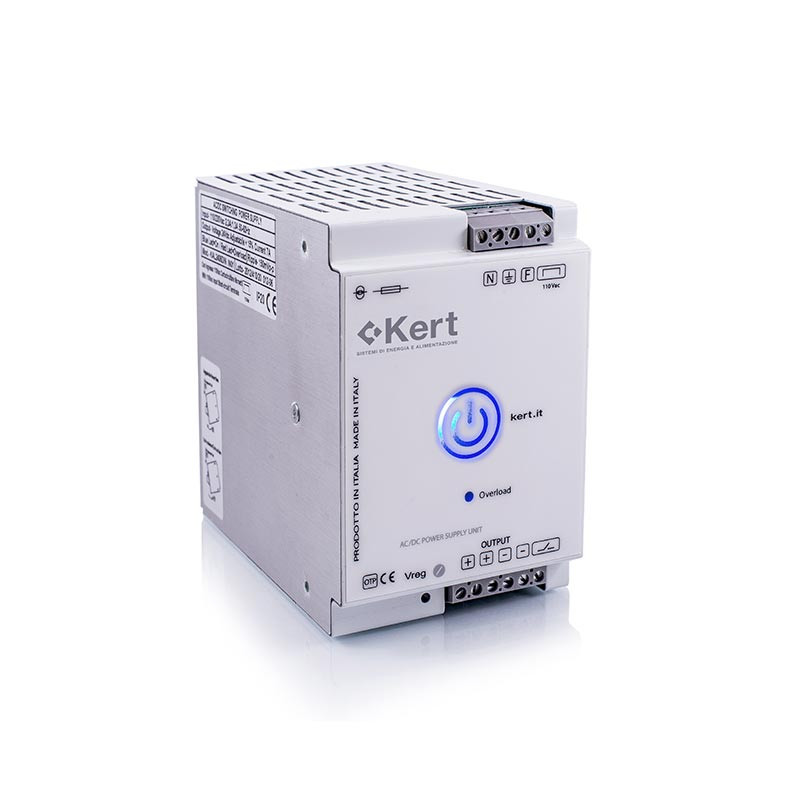

AC-DC Power supplies
AC-DC Power supplies
| Installation | DIN rail |
| Format | Industrial |
| Technology | Switching |
| Phase | Single |
| Input voltage (Vac) | 100 - 240 Vac |
| Input current Iout (A) | 3,5 / (115Vac) / 2 (230Vac) |
| Inrush current (A) | 80 |
| Input frequency (Hz) | 47 - 63 |
| Power Dissipation at 230Vac (W) | 28 |
| Efficiency (%) | >89 |
| Power (W) | 240 |
| Output voltage | 24 Vdc |
| Adjustable Output (Vdc) | 21 - 28 |
| Output current (A) | 10 |
| Working temperature (°C) | -20 +60 |
| Cooling | Automatic forced cooling |
| Derating | - |
| IP rating | IP20 |
| Parallel connection | No |
| Communication | - |
| Available contact | Contact for functioning |
| Signalling | DC OK |
| Protections | Overload, Short circuit, Thermal |
| Connection | Screw |
| Material | Alluminum |
| Standards | EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, EN 62368-1 |
| Classification Pelv / Selv | pelv / selv |
| Warranty | 2 Year |
| Package quantity (pieces) | 4 |
| Height (mm) | 111 |
| Width (mm) | 75 |
| Depth (mm) | 123 |
| Weight (Kg) | 0,6 |
