AC-DC Power supplies

KAS1201PC

Part number: KAS1201PC

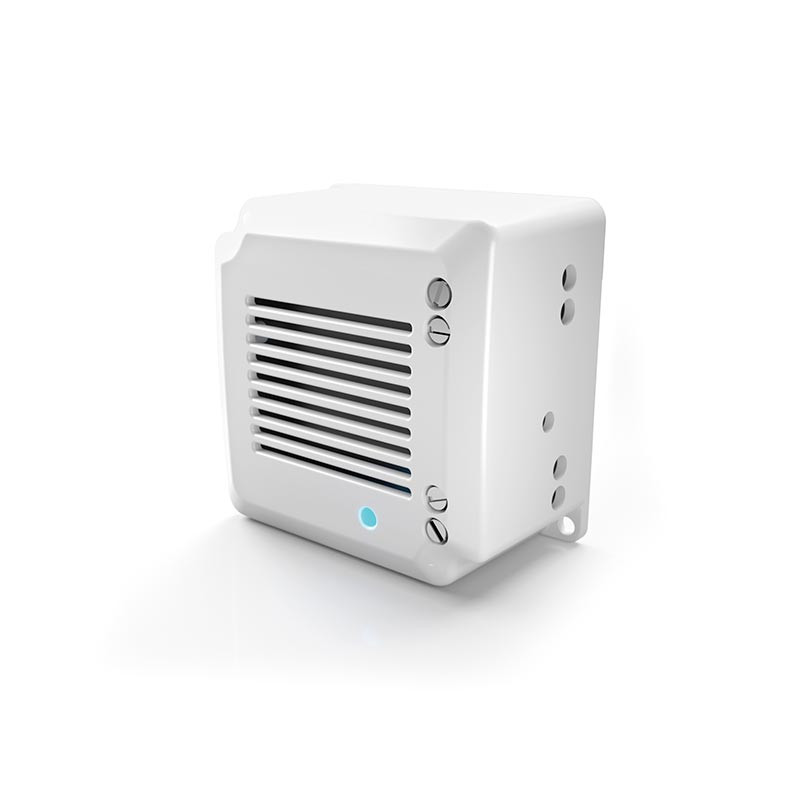

Mini switching power supply 12Vdc 1A with cable included

Application fields

Residential
Commercial
Medical
Public service
Public entertainment

Data sheet

Mini switching power supply 12Vdc 1A with cable included

Installation Surface
Format home
Technology Switching
Phase Single
Input voltage (Vac) 100 - 240 Vac
Input current Iout (A) 0,2 (115Vac) / 0,12 (230Vac)
Inrush current (A) 20
Input frequency (Hz) 50 - 60
Power Dissipation at 230Vac (W) 3
Efficiency (%) >80
Power (W) 12
Output voltage 12 Vdc
Adjustable Output (Vdc) 11 - 14
Output current (A) 1
Working temperature (°C) -20 +60
Cooling Natural
Derating -
IP rating IP20
Parallel connection No
Available contact -
Communication -
Signalling Output present
Protections Overload, Short circuit
Connection Screw
Material Plastic fire-retardant UL-94V-0
Standards EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, EN 62368-1
Classification Pelv / Selv pelv / selv
Warranty 2 Year
Package quantity (pieces) 1
Height (mm) 33
Width (mm) 56
Depth (mm) 56
Weight (Kg) 0,06
