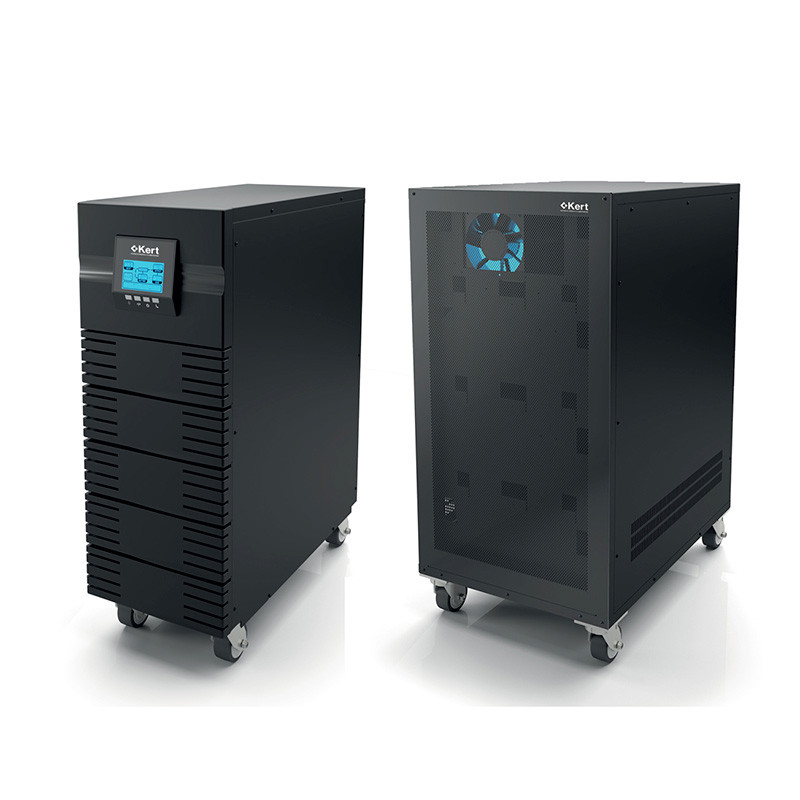

CPSS/GSE Emergency power supplies
CPSS/GSE Emergency power supplies
| Installation | Tower |
| Technology | On-line |
| Phase | Single |
| Wave form | Pure sine wave |
| Input voltage (Vac) | 230 Vac |
| Input frequency (Hz) | 50 |
| OPERATING POWER [O.P.] (W) | 7000 |
| BACKUP TIME / [W O P] (min) | 30 / [7000] |
| Operating current [inrush current] (A) | 32 |
| Transfer time (ms) | 0 |
| Output voltage | 230 Vac |
| Output frequency (Hz) | 50 |
| Overload | |
| Efficiency (%) | >97 |
| Output type | SE, SA |
| EPO - Emergency power off | yes |
| By-pass | yes |
| Information on the display | Remaining battery capacity, Load level, Operating status, Battery Voltage, Input Voltage, Output Voltage |
| Signalling | Minimum battery voltage, Overtemperature, Short circuit, Operated batteries |
| Recharge time | 12h to 80% battery |
| Battery input voltage (Vdc) | 240 |
| Battery type | Sealed lead acid, maintenance-free |
| Communication | RS232 |
| Cooling | Automatic forced cooling |
| Working temperature (°C) | -10 +40 |
| IP rating | IP20 |
| Audible noise at 1m (dBA) | <50 |
| Connection | Screw |
| Standard provided equipment | - |
| Material | Plastic fire-retardant UL-94V-0, Metal |
| EN 50171 | Yes |
| Standards | EN 62485-2, EN 62040-1, EN 62040-2, EN 62040-3, Directive (LVD) 2014/35/UE, Directive (EMC) 2014/30/UE |
| Warranty | 2 Year |
| Height (mm) | 717, 732 |
| Package quantity (pieces) | 1 |
| Width (mm) | 260, 394 |
| Depth (mm) | 570, 579 |
| Weight (Kg) | 308 |
