Inverter DC-AC

KSTA1000HS12C

Part number: I101000HS12C

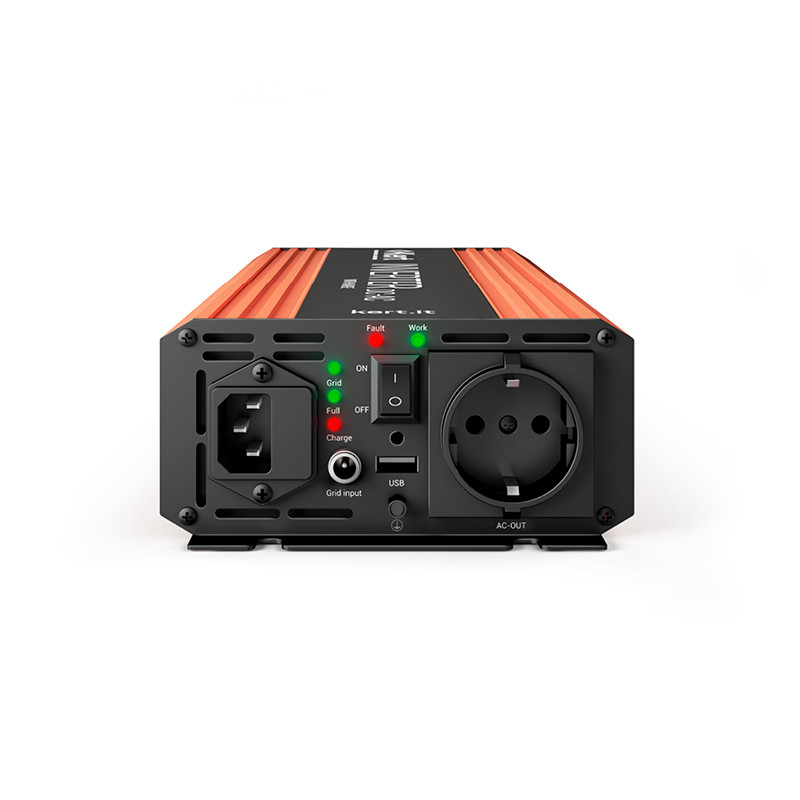

Pure sine wave Inverter 1000W - 12Vdc Input Voltage with battery charger

Application fields

Bus / Vehicles

Data sheet

Pure sine wave Inverter 1000W - 12Vdc Input Voltage with battery charger

Wave form Pure sine wave
Signalling -
Available contact -
Audible noise at 1m (dBA) <62
IP rating IP20
Cooling Automatic forced cooling
Working temperature (°C) -10 +40
Efficiency (%) >95
Soft start Yes
Absorption from the battery empty (A)
Output frequency (Hz) 50
Output voltage 230 Vac
Input Voltage DC 12 Vdc
Power (W) 1000
Surge rating (W/s) 1500 / 5
Installation Tower, Wall mount
Integrated charger Yes
Harmonic distorsion (%THD) <3
Protections Short circuit
Connection Screw, Plug-in
Standard provided equipment Battery cables, Remote ON/OFF cable 1,5 mt
"E" Mark -
Standards EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62040-1, EN 62109-1 , EN 62109-2, EN 55032
Warranty 2 Year
Package quantity (pieces) 1
Height (mm) 67
Width (mm) 145
Depth (mm) 415
Weight (Kg) 3,5
